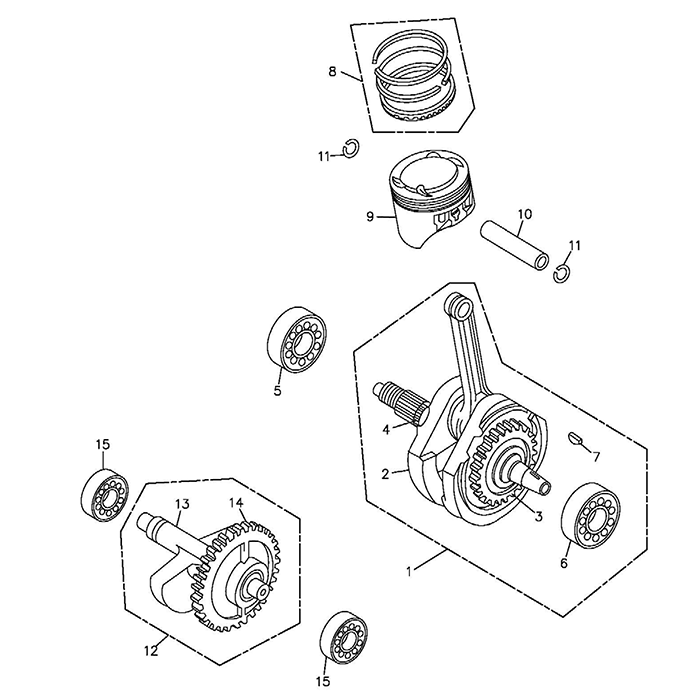

Crankshaft | Piston
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CRANKSHAFT ASSY
13000-410-000
|
|||
| 2 |
CRANK SHAFT
13001-410-000
|
|||
| 3 |
Crank Shaft Gear, 34T
13002-169-000
|
$35.58 | ||
| 4 |
Timing Sprocket, 19T
14311-169-000
|
$43.37 | ||
| 5 |
Radial Ball Bearing Front Wheel, TMB208CC3(NTN)
96100-TMB208
|
$67.76 | ||
| 6 |
Radial Ball Bearing Front Wheel, TM-SC0693CS20
96100-TMSC0693
|
$73.09 | ||
| 7 |
Woodruff Key, 24*14*4
90471-169-000
|
$4.18 | ||
| 8 |
PISTON RING SET
13011-410-000
|
$45.05 | ||
| 9 |
PISTON
13100-410-000
|
$51.98 | ||
| 10 |
PISTON PIN
13111-410-000
|
$12.06 | ||
| 11 |
PISTON PIN CLIP
13115-410-000
|
$1.20 | ||
| 12 |
BALANCER SHAFT ASSY
13420-410-000
|
|||
| 13 |
BALANCER SHAFT
13421-410-000
|
|||
| 14 |
Balancer Shaft Gear, 34T
13422-169-000
|
$46.90 | ||
| 15 |
Radial Ball Bearing, TMB203AJR2C3/2A
96100-TMB203A
|
$37.82 |
