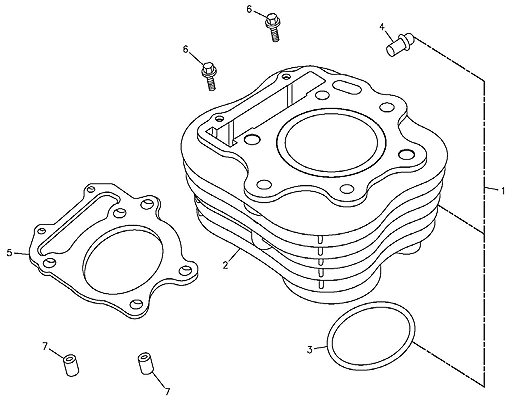

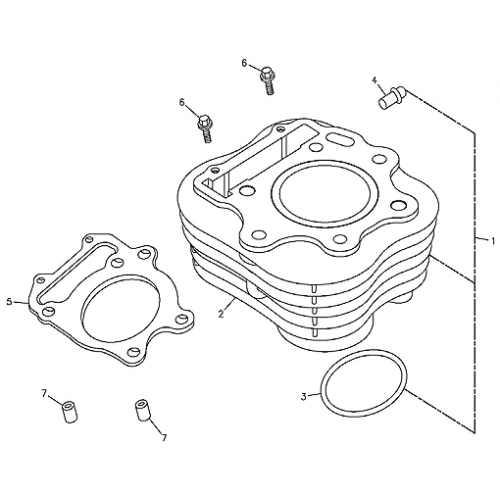

Cylinder (Adly ATV 300U II)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Ass'Y
12100-169-000
|
|||
| 2 |
Cylinder
12101-169-000
|
|||
| 3 |
Oil Ring, 78.3*2
91378-169-000
|
|||
| 4 |
Breather Pipe
12102-169-000
|
$7.03 | ||
| 5 |
Cylinder Gasket
12191-169-000
|
|||
| 6 |
Hex Flange Bolt, 6*28
96000-06028-08B
|
|||
| 7 |
Dowel Pin, 12*20
94301-12200
|
$4.02 |
