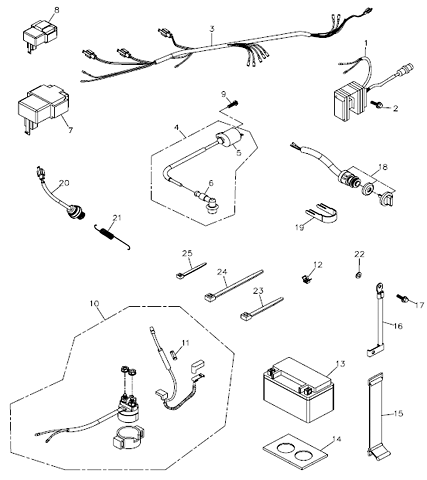

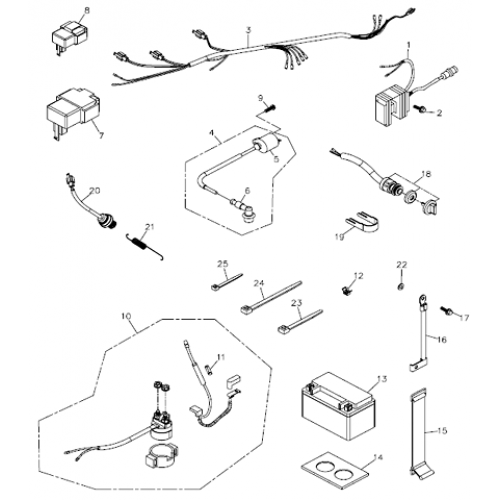

Battery & Main Wire Harness (Adly ATV 300U II)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Regulater Rectifier(25A)
31600-169-001
|
$120.17 | ||
| 2 |
Hex Washer Face Bolt, 6*15
96000-06015-10G
|
$1.47 | ||
| 3 |
Main Wire Harness
32100-223-000
|
|||
| 4 |
Ignition Coil Ass'Y
30500-169-000
|
|||
| 5 |
High Tension Coil
30510-169-000
|
|||
| 6 |
Spark Plug Cap
30700-169-000
|
|||
| 7 |
C.D.I Unit, 50V/470u
30410-169-003
|
$129.99 | ||
| 8 |
Gear Change Control Unit
32203-169-000
|
|||
| 9 |
Hex Flange Bolt, M5*22
96000-05022-08G
|
$0.74 | ||
| 10 |
Starter Relay Ass'Y
38500-169-002,32101-169-000
|
$64.33 | ||
| 11 |
Fuse, 20A
98200-169-000
|
$3.35 | ||
| 12 |
Push Tie Mount
90801-179-000
|
|||
| 13 |
Battery YTX9-BS
31500-169-000
|
|||
| 14 |
Rubber Pad
30003-169-000
|
|||
| 15 |
Ground Wire
32103-169-000
|
$11.86 | ||
| 16 |
Battery Strap
31520-169-000
|
|||
| 17 |
Hex Flange Bolt, M6*10
96000-06010-10G
|
|||
| 18 |
Main Switch Ass'Y
35100-169-000
|
$44.12 | ||
| 19 |
Main Switch Bracket
35102-145-000
|
$2.72 | ||
| 20 |
Stop Switch Ass'Y
35350-108-000
|
$10.54 |
