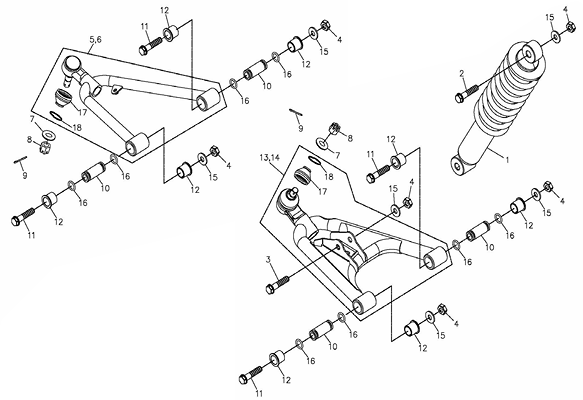

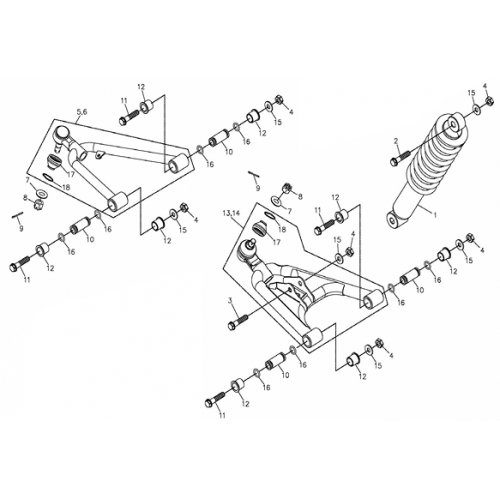

Arm (Adly ATV 300U II)
# Product Code: Product Name Req'd Price:
1 51400-182-000 Front Cushion Ass`Y $126.07
2 96000-10040-14G Hex Flange Bolt, M10*40 $3.83
3 96000-10055-14G Hex Washer Face Bolt, 10*55 $4.46
4 90350-10000G Nylon Nut, M10*P1.25 $0.64
5 51210-169-000 R. Upper Suspension Arm $92.69
6 51310-169-000 L. Upper Suspension Arm $99.73
7 94101-1222020 Plain Washer, 12*22*2 $0.79
8 94051-12000G Scotch Nut, M12 $3.59
9 94201-03320 Cotter Pin, 3*32
10 51350-169-000 Bushing $10.46
11 96000-10065-12G Hex Washer Face Bolt, 10*65 $4.46
12 51202-169-000 Bush, 17*23.1*19.2 $5.02
13 51610-169-000 R. Lower Suspension Arm $92.69
14 51510-169-000 L. Lower Suspension Arm $92.69
15 94101-1020020 Plain Washer, 10*20*2 $0.56
16 91312-169-00A O-Ring, 12.5*2.4 $1.43
17 51212-169-000 Dust Seal $5.02
18 51219-169-000 Spring $3.19
Showing 1 to 18 of 18 (1 Pages)
