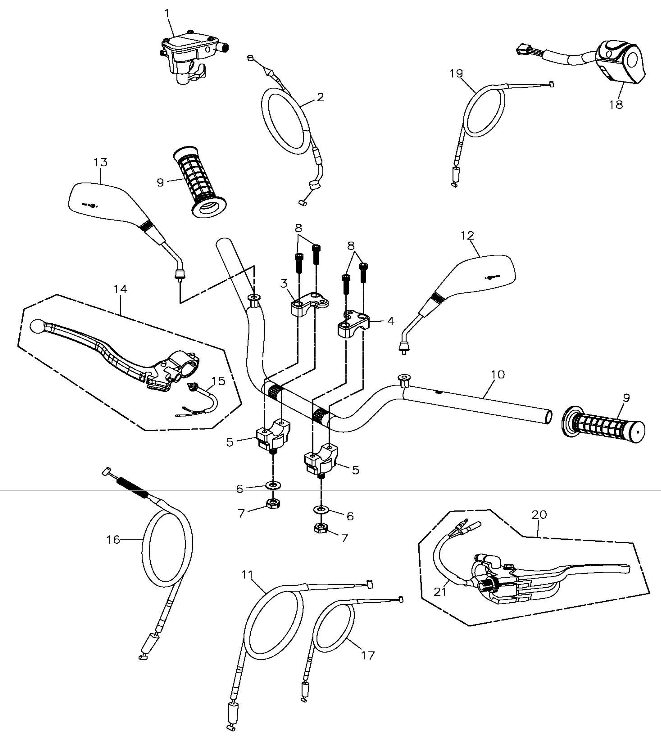

Handle Bar (Adly ATV 300S II CrossXRoad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Throttle Lever Ass'Y
53170-169-000
|
$56.73 | ||
| 2 |
Throttle Cable
17910-169-000
|
$29.00 | ||
| 3 |
Right Handle Bar Clamp
53103-145-000
|
$8.79 | ||
| 4 |
Left Handle Bar Clamp
53102-145-000
|
$8.79 | ||
| 5 |
Handle Bar Bottom Clamp
53101-154-000
|
$11.60 | ||
| 6 |
Plain Washer, 10*22*2.5
94105-1022025G
|
$2.09 | ||
| 7 |
Nylon Nut, M10*P1.25
90350-10000G
|
$0.67 | ||
| 8 |
Hex Socket Bolt, 6*25
91000-06025B
|
$1.00 | ||
| 9 |
Handle Grip Set
53165-179-000
|
$15.82 | ||
| 10 |
Handle Bar
53100-223-000BK
|
$36.56 | ||
| 11 |
Clutch Cable
22870-169-000
|
$36.56 | ||
| 12 |
L.Rear View Mirror
88120-145-000
|
$21.09 | ||
| 13 |
R.Rear View Mirror
88110-145-000
|
$21.09 | ||
| 14 |
Right Lever Ass'Y, 5EA5-RR
53170-169-00A
|
$85.01 | ||
| 15 |
R.Brake Switch
35340-169-000
|
$11.86 | ||
| 16 |
Parking Brake Cable
43470-169-000
|
$36.56 | ||
| 17 |
Reverse Cable A
43480-169-000
|
$24.09 | ||
| 18 |
L.Handle Switch Ass'Y
35200-169-00A
|
$60.37 | ||
| 19 |
Choke Cable
17950-169-000
|
$23.06 | ||
| 20 |
Left Lever Ass'Y
53179-169-000
|
