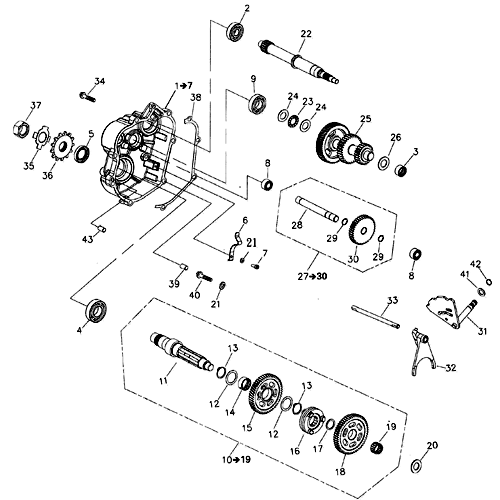

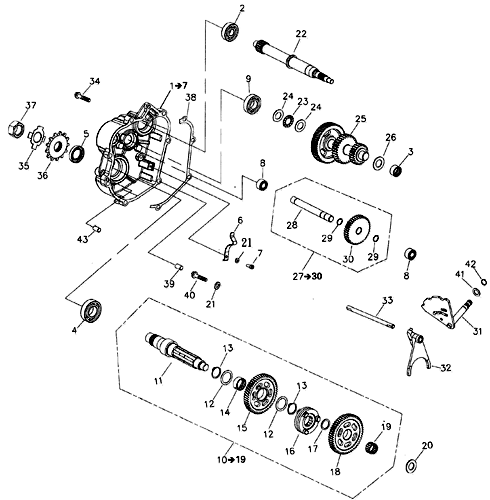

Gear Shift (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Gear Box Cover
21301-179-002
|
|||
| 2 |
Radial Ball Bearing, 6302C3 15*42*13
96100-6302C3
|
$18.10 $13.58 | ||
| 3 |
Needle Bearing, HK1812
96200-HK1812
|
$30.05 $22.54 | ||
| 4 |
Radial Ball Bearing, 6205C3 25*52*15
96100-6205C3
|
$21.09 $15.82 | ||
| 5 |
Oil Seal, 25*40*7
96500-25407
|
$5.90 $4.43 | ||
| 6 |
Spring Plate
24435-179-003
|
$12.75 $9.56 | ||
| 7 |
Hex Socket Bolt, 5*12
91000-05012C
|
$0.74 $0.55 | ||
| 8 |
Needle Bearing, HK1512
96200-HK1512
|
$21.43 $16.07 | ||
| 9 |
Radial Ball Bearing, B17102 17*47*14
96100-6303
|
$35.30 $26.47 | ||
| 10 |
Drive Axle Ass'Y
23220-179-002
|
$133.34 $100.00 | ||
| 11 |
Drive Axle
23221-179-001
|
|||
| 12 |
Plain Washer, 26*35*0.5
94105-2635005
|
|||
| 13 |
External Cir Clip, STW25
94511-2500S
|
$3.01 $2.26 | ||
| 14 |
Inner Bush
23402-179-001
|
|||
| 15 |
High Gear
23405-179-001
|
|||
| 16 |
Sliding Bush
23461-179-001
|
|||
| 17 |
Plain Washer, 20*26*1
94105-2026010
|
|||
| 18 |
Reverse Lidle Gear
23406-179-001
|
|||
| 19 |
Needle Bearing, K20*24*13
96200-202413
|
|||
| 20 |
Plain Washer, 15*28*2
94105-1528020A
|
$1.81 $1.36 |
