Frame Body (Adly ATV 220S)

Change Assembly

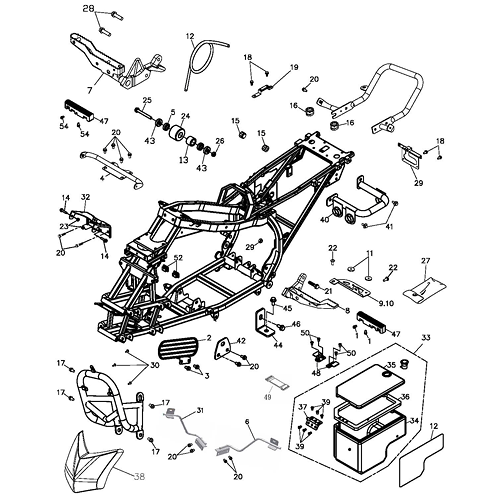

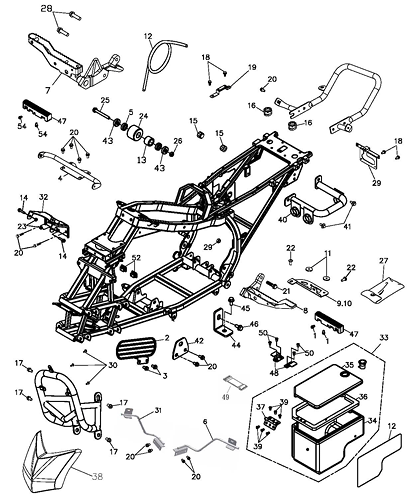

Frame Body (Adly ATV 220S)
# Product Code: Product Name Req'd Price:
1 96000-06010-10G Hex Flange Bolt, M6*10 $0.64
2 18355-261-000 Exhaust Bracket
3 92000-06014-10G Hex Bolt, 6*14 $0.96
4 64309-226-000 Front Cover Lower Pole $31.38
5 96100-608LLU Ball Bearing $10.46
6 64341-256-001 Front Cover Left Fixed Pole
7 50717-223-001 R.Step Bar Comp $57.49
8 50718-223-001 L.Step Bar Comp $57.49
9 64314-226-000 R. Fixed Pole $10.46
10 64315-226-000 L. Fixed Pole $10.46
11 94102-145-000 Rubber Washer $3.98
12 94450-0507600 , 5*7*L600
13 40539-179-000 Bushing $2.63
14 96000-06028-10C Hex Flange Bolt, 6*28 $0.80
15 77212-169-000 Rubber $3.83
16 77211-145-001 Rubber $2.55
17 96000-10015-14G Hex Flange Bolt, M10*15 $3.72
18 96000-06012-10G Hex Washer Face Bolt, 6*12 $1.28
19 50228-182-000 Rear Cover Bracket $12.55
20 96000-08016-12G Hex Flange Bolt, M8*16 $1.91
Showing 1 to 20 of 52 (3 Pages)
