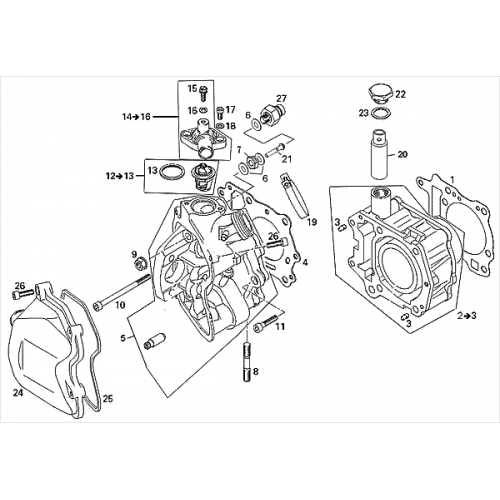

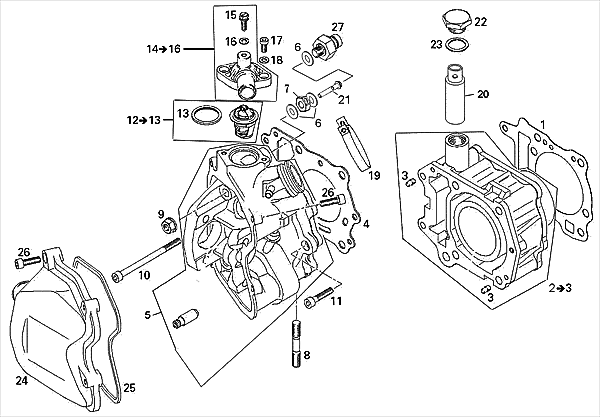

Cylinder (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Gasket
12191-179-000
|
$7.69 | ||
| 2 |
Cylinder
12101-179-0A0
|
$128.99 | ||
| 3 |
Dowel Pin, 5*10
94301-05010
|
$3.35 | ||
| 4 |
Cylinder Head Gasket
12251-179-000
|
|||
| 5 |
Cylinder Head Ass'Y
12200-179-000
|
$293.99 | ||
| 6 |
Copper Plain Washer, 10*15*1.2
94103-1015012
|
$2.05 | ||
| 7 |
3-Way Joint
35501-179-000
|
$11.72 | ||
| 8 |
Stud Bolt, 8*50
91001-08050C
|
$3.77 | ||
| 9 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 | ||
| 10 |
Hex Socket Bolt, 6*90
91000-06090C
|
$2.85 | ||
| 11 |
Hex Socket Bolt, 6*30
91000-06030C
|
$3.68 | ||
| 12 |
Thermostat With Gasket
19310-179-000
|
$67.76 | ||
| 13 |
Thermostat Gasket
19312-179-000
|
$4.76 | ||
| 14 |
Thermostat Cover
19311-261-000
|
$5.86 | ||
| 15 |
Hex Washer Face Truss Head Phillips Bolt, 5*13
93906-05013
|
|||
| 16 |
Rubber Washer, 5*11*1
94102-0511010
|
$0.67 | ||
| 17 |
Hex Socket Bolt, 5*12
91000-05012C
|
$0.74 | ||
| 18 |
Plain Washer, 5*10*1.0
94101-0510010C
|
$2.09 | ||
| 19 |
Hose Clamp
14110-179-000
|
$3.35 | ||
| 20 |
Chain Tension Paiston
40546-179-000
|
$49.65 |
