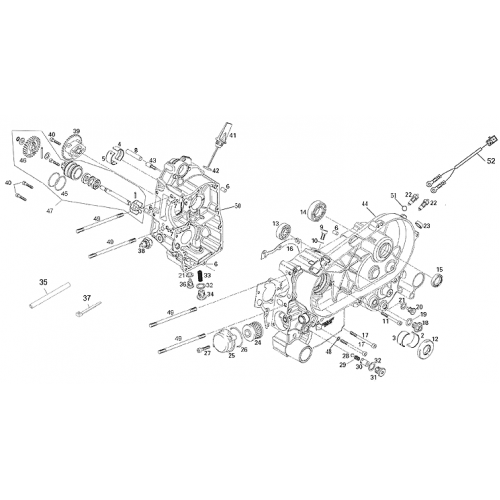

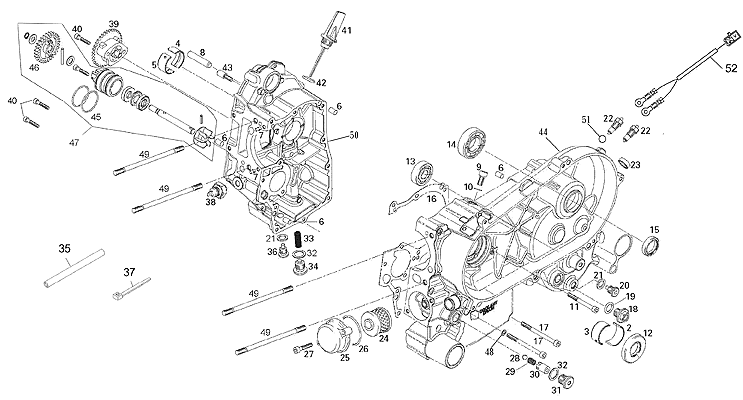

Crankcase (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Crankcase Ass'Y
11100-261-000
|
$294.15 | ||
| 2 |
Plain Bearing, 32*36*18
96700-179-000
|
$18.45 | ||
| 3 |
Plain Bearing, 32*36*18
96701-179-000
|
$18.45 | ||
| 4 |
Plain Bearing, 32*36*18
96702-179-000
|
$20.10 | ||
| 5 |
Plain Bearing, 32*36*18
96703-179-000
|
$20.10 | ||
| 6 |
Dowel Pin, 8*12
94301-08120
|
$1.34 | ||
| 7 |
Dowel Pin, 5*10
94301-05010
|
$3.35 | ||
| 8 |
Location Pin, 10*50
96300-100500
|
$5.13 | ||
| 9 |
Hex Socket Bolt, 8*16
91000-08016C
|
$2.09 | ||
| 10 |
Copper Plain Washer, 8*13*0.8
94103-0813008
|
$1.59 | ||
| 11 |
Hex Socket Bolt, 6*60
91000-06060C
|
$1.34 | ||
| 12 |
Oil Seal, 25*52*7
96500-25527
|
$14.30 | ||
| 13 |
Radial Ball Bearing, 6302C3 15*42*13
96100-6302C3
|
$18.10 | ||
| 14 |
Radial Ball Bearing, 6205C3 25*52*15
96100-6205C3
|
$21.09 | ||
| 15 |
Oil Seal, 25*35*7
96500-25357
|
$10.54 | ||
| 16 |
Crankcase Gasket
11191-179-000
|
$13.18 | ||
| 17 |
Hex Socket Bolt, 6*80
91000-06080C
|
$2.76 | ||
| 18 |
Plug Screw, M14*1.5
96006-14014
|
$3.77 | ||
| 19 |
O-Ring, 15*2.5
91315-179-000
|
|||
| 20 |
Plug Screw, M14*14
96007-179-000
|
$5.86 |
