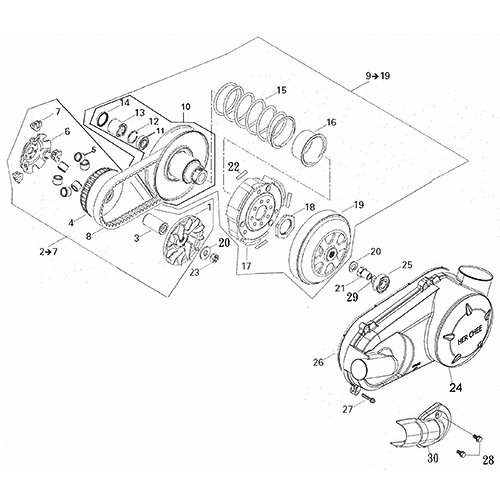

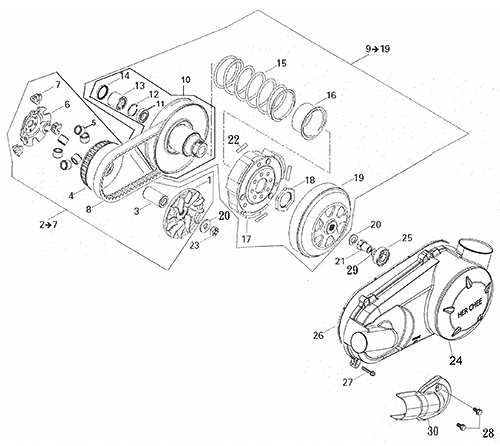

Pully System (Adly ATV 200S)

Change Assembly

Pully System (Adly ATV 200S)
# Product Code: Product Name Req'd Price:
1 22102-179-000 Fixed Face $42.02
2 22103-179-000 Cvt Drive Unit Ass'Y $113.33
3 96401-1726495 Spacer, 17*26*49.5
4 22109-179-000 Primary Drive Pulley Ass'Y
5 22121-179-000 Roller 10 Kpl Gr., 10G Set $30.12
6 22131-179-000 Plate Ramp $12.55
7 22132-179-000 Sider Piece $4.53
8 23100-179-000 Cvt Belt $80.96
9 22000-179-000 Cvt Drive Unit Ass'Y $329.81
10 23200-179-000 Cvt Drive Unit
11 96100-6903LLU Ball Bearing, 6903LLU C3
12 94512-3000R Retaining Ring 30*1.5, RTW-30
13 96200-233230 Needle Bearing, 23*32*30
14 96500-25324 Oil Seal, 25*32*4 $4.88
15 23233-179-000 Compression Spring
16 23237-179-000 Spring Seat
17 20001-179-000 Clutch Ass'Y
18 90202-179-000 Hex Nut, 36mm
19 22100-179-000 Clutch Drum $80.96
20 94105-1229015A Plain Washer, 12*29*1.5
Showing 1 to 20 of 30 (2 Pages)
