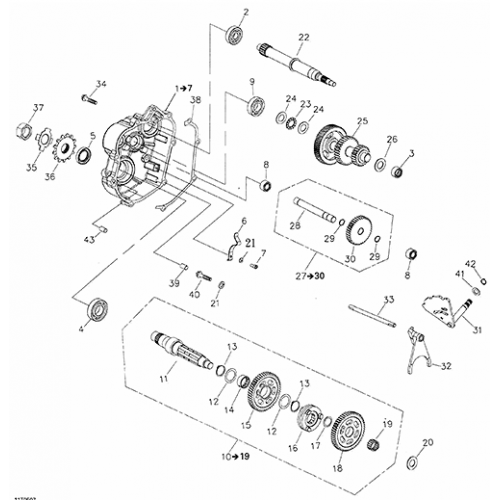

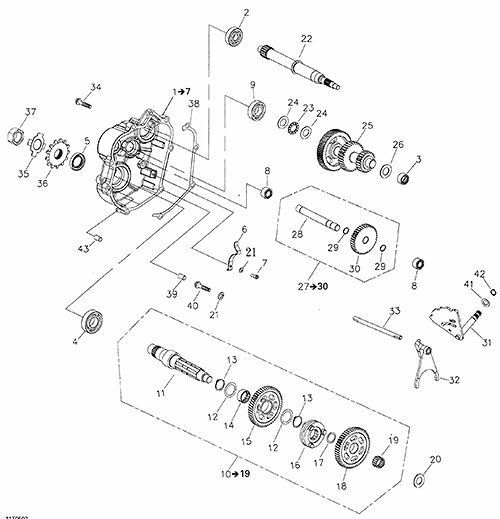

Gear Shift (Adly ATV 200S)
Change Assembly
| # | Product Code: | Product Name | Req'd | Price: | |
|---|---|---|---|---|---|
| 1 | 21301-179-002 | Gear Box Cover | |||
| 2 | 96100-6302C3 | Radial Ball Bearing, 6302C3 15*42*13 | $17.24 | ||
| 3 | 96200-HK1812 | Needle Bearing, HK1812 | $28.62 | ||
| 4 | 96100-6205C3 | Radial Ball Bearing, 6205C3 25*52*15 | $20.08 | ||
| 5 | 96500-25407 | Oil Seal, 25*40*7 | $5.62 | ||
| 6 | 24435-179-003 | Spring Plate | $11.61 | ||
| 7 | 91000-05012C | Hex Socket Bolt, 5*12 | $0.70 | ||
| 8 | 96200-HK1512 | Needle Bearing, HK1512 | $20.41 | ||
| 9 | 96100-6303 | Radial Ball Bearing, B17102 17*47*14 | $33.62 | ||
| 10 | 23220-179-002 | Drive Axle Ass'Y | $126.06 | ||
| 11 | 23221-179-001 | Drive Axle | |||
| 12 | 94105-2635005 | Plain Washer, 26*35*0.5 | |||
| 13 | 94511-2500S | External Cir Clip, STW25 | $2.87 | ||
| 14 | 23402-179-001 | Inner Bush | |||
| 15 | 23405-179-001 | High Gear | |||
| 16 | 23461-179-001 | Sliding Bush | |||
| 17 | 94105-2026010 | Plain Washer, 20*26*1 | |||
| 18 | 23406-179-001 | Reverse Lidle Gear | |||
| 19 | 96200-202413 | Needle Bearing, K20*24*13 | |||
| 20 | 94105-1528020A | Plain Washer, 15*28*2 | $1.73 |
