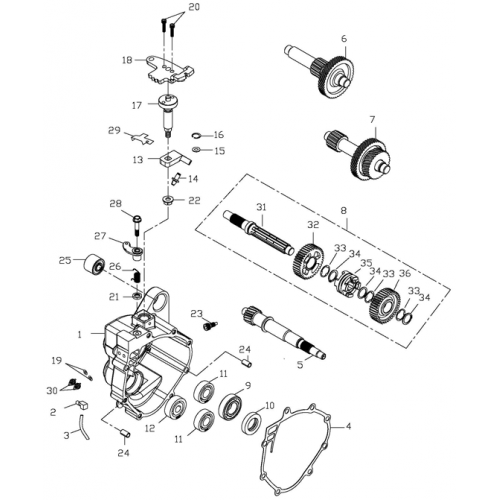

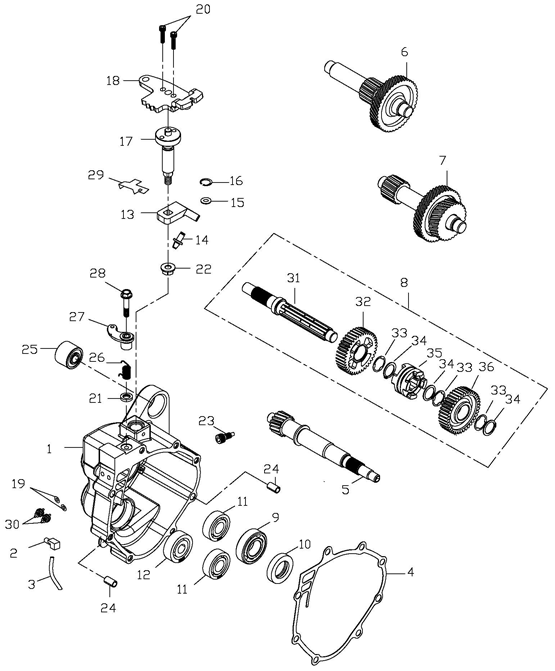

Transmission (Adly ATV 150S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mission Cover
21301-197-001
|
|||
| 2 |
Breather Hose Head
16610-104-000
|
$2.76 | ||
| 3 |
Breather Hose
16615-104-000
|
$1.07 | ||
| 4 |
Mission Cover Gasket
21395-183-000
|
|||
| 5 |
Drive Shaft
23411-197-000
|
$56.73 | ||
| 6 |
Reverse Idle Gear Ass'Y
23440-183-00A
|
$60.37 | ||
| 7 |
Idle Gear Ass'Y
23420-197-000
|
$85.01 | ||
| 8 |
Final Gear Comp
23430-197-001
|
$143.33 | ||
| 9 |
Radial Ball Bearing, 6005 ZZ
96100-6005ZZ
|
$25.04 | ||
| 10 |
Oil Seal, 30*47*7
96500-30477
|
$4.76 | ||
| 11 |
Radial Ball Bearing, 6202
96100-62020
|
|||
| 12 |
Radial Ball Bearing, TMB301
96100-TMB301
|
$32.95 | ||
| 13 |
Gear Shift Fork
24231-183-001
|
$10.25 | ||
| 14 |
Gear Shift Fork Guide Shaft
24232-183-000
|
$13.18 | ||
| 15 |
Sealing Washer, 6.5*12*1
94103-0612010
|
$2.09 | ||
| 16 |
External Cir Clip, ETW-5
94511-0500E
|
$1.09 | ||
| 17 |
Gear Shift Fork Shaft
24631-183-000
|
$40.34 | ||
| 18 |
Gear Shift Arm
24630-228-000
|
$13.64 | ||
| 19 |
Copper Plain Washer, 10.5*15*1.3
94103-1115013
|
$0.84 | ||
| 20 |
Hex Bolt , 6*10
92000-06010-10B
|
$0.59 |
