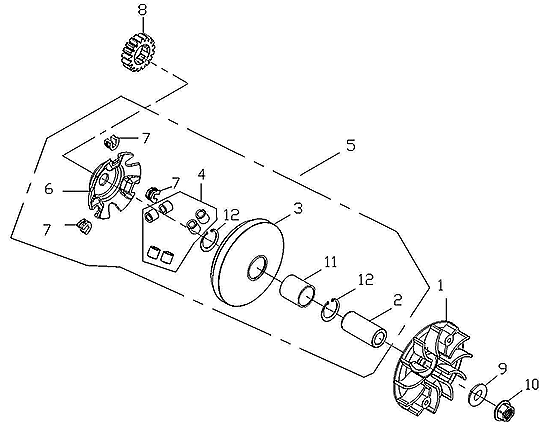

Drive Face (Adly ATV 150S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Drive Face
22102-120-000
|
$21.68 | ||
| 2 |
Drive Face Boss, 17*24*51.8
96401-172451
|
$11.72 | ||
| 3 |
Primary Drive Face
22110-120-000
|
$35.30 | ||
| 4 |
Roller Comp Weight, 16G Set
22121-197-000
|
$27.02 | ||
| 5 |
Movable Drive Face Ass'Y
22103-197-000
|
$49.17 | ||
| 6 |
Plate Ramp
22131-197-000
|
$11.60 | ||
| 7 |
Sider
22132-120-000
|
$1.67 | ||
| 8 |
Kick Drive Gear, 20T
28211-120-0A0
|
$18.45 | ||
| 9 |
Plain Washer, 12*25*2.3
94101-1225023A
|
$1.34 | ||
| 10 |
Hex Flange Nut With Serration, 12mm
94050-12000C
|
$2.68 | ||
| 11 |
Bush, 24*28*30
96401-242830
|
$11.13 | ||
| 12 |
Internal Cir Clip, RTW-28
94512-2800R
|
$2.68 |
