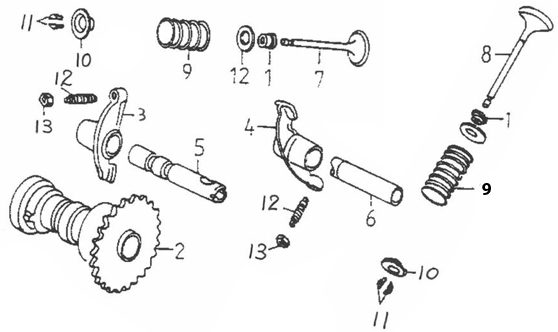

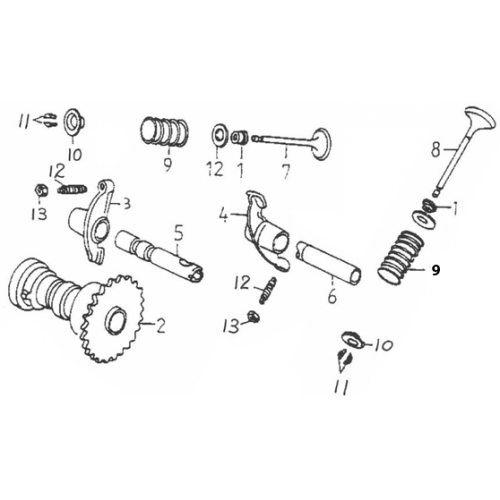

Camshaft, Valve (Adly ATV 150S II CrossXRoad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Valve Stem Seal
12209-120-000
|
$4.69 | ||
| 2 |
Camshaft Comp
14400-197-000
|
$60.37 | ||
| 3 |
Arm Valve Rocker,In.
14431-197-0A1
|
$27.68 | ||
| 4 |
Arm Valve Rocker,Ex.
14432-197-0A1
|
$27.68 | ||
| 5 |
Shaft,In. Rocker Arm
14452-197-0A0
|
$11.72 | ||
| 6 |
Shaft,Ex. Rocker Arm
14453-197-0A0
|
$11.72 | ||
| 7 |
In. Valve
14711-197-0A0
|
$16.99 | ||
| 8 |
Ex. Valve
14721-197-0A0
|
|||
| 9 |
Valve Outer Spring
14751-197-000
|
$4.02 | ||
| 10 |
Valve Spring Retainer
14771-197-000
|
$5.13 | ||
| 11 |
Cotter
14781-120-000
|
$4.18 | ||
| 12 |
Valve Gap Adjusting Screw
90012-120-000
|
$5.86 | ||
| 13 |
Valve Gap Adjusting Nut
90206-120-000
|
$3.35 |
